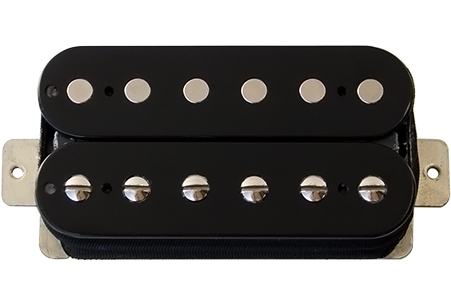

IHB4 HB Pickup

$180.00

Out of stock

The IHB4 humbucking pickup series is based on unique design that reinforces the magnetic field of the HB pickup
IHB4 pickup, is optionally capable to deliver 4 different pickup soundings depending on the magnets arrangement
IHB4 is slightly under wound to provide a space for placement an additional middle magnet between the two pickup coils
That makes the signal creating string area bigger and the IHB4 pickup delivers stronger and more dimensional guitar tone

Clear selection
SKU: N/A Category:

Description

ILITCH IHB4 multiple magnets side by side humbucking pickup
Great tone and dynamic response

DESIGN:
Employs the original IHB4 technology designed by ILITCH more than 10 years ago that makes this pickup unique and the only in the field
The IHB4mm pickup contains 2 permanent magnets tor magnetic structure shaping – a regular alnico bar magnet plus a middle magnet positioned between the two HB pickup coils. It will produce about 1.25 times stronger output, compared to the output of a traditional HB pickup with same number of turns and having only alnico bar magnet loaded
The IHB4msm pickup contains 3 permanent magnets tor magnetic structure shaping – a regular alnico bar magnet plus a middle magnet positioned between the two HB pickup coils and a side magnet positioned aside under one of the HB pickup coils. It sounds like a heavy single coil pickup, which is tonally close to the famous P90 style pickups and without hum

FEATURES:
Original HB pickup magnetizing design for magnetic field reinforcement of the traditional side by side HB pickup
Direct retrofit for guitars equipped with HB pickup and about 500 KOhms Volume/Tone potentiometers
A single IHB4 pickup, is optionally capable to deliver at least 4 different soundings depending on the permanent magnets arrangement

Designed and manufactured in USA

User’s Manual IHB4 pickup

SPECIFICATIONS:

Product Name Output cable Magnets Resonant freq. D.C. Resistance EQ B/M/T Output
IHB4 mm Vintage Bridge 4 Conductor Alnico 5, ceramic bars 4.1 KHz 7.0 KΩ 7/6/7 Vintage
IHB4 mm Power Bridge 4 Conductor Alnico 5, ceramic bars 3.4 KHz 10.0 KΩ 8/7/6 Moderate
IHB4 mm Hot Bridge 4 Conductor Alnico 5, ceramic bars 3 KHz 14.0 KΩ 9/7/6 Hot
IHB4 mm VIintage Neck 4 Conductor Alnico 5, ceramic bars 4.2 KHz 7.0 KΩ 7/6/7 Vinatge
IHB4 mm Power Neck 4 Conductor Alnico 5, ceramic bars 3.3 KHz 10.0 KΩ 8/7/6 Moderate
IHB4 mm Hot Neck 4 Conductor Alnico 5, ceramic bars 3 KHz 14.0 KΩ 9/7/6 Hot
IHB4 msm Vintage Bridge 4 Conductor Alnico 5, ceramic bars 4.1 KHz 7.0 KΩ 7/6/7 Vintage
IHB4 msm Power Bridge 4 Conductor Alnico 5, ceramic bars 3.4 KHz 10.0 KΩ 8/7/6 Moderate
IHB4 msm Hot Bridge 4 Conductor Alnico 5, ceramic bars 3 KHz 14.0 KΩ 9/7/6 Hot
IHB4 msm Vintage Neck 4 Conductor Alnico 5, ceramic bars 4.2 KHz 7.0 KΩ 7/6/7 Vintage
IHB4 msm Power Neck 4 Conductor Alnico 5, ceramic bars 3.3 KHz 10.0 KΩ 8/7/6 Moderate
IHB4 msm Hot Neck 4 Conductor Alnico 5, ceramic bars 3 KHz 14.0 KΩ 9/7/6 Hot

SOUND:

Sound files recorded with a close located Audix mic, AC 30 – all tube amplifier, ILITCH Classic One DDO and Fender Strat style guitar

VIDEO: coming soon

Additional information

POSITION

IHB4 Bridge position 52mm, IHB4 Neck position 50mm
MAGNETS

MM – 2 magnets structure, MSM – 3 magnets structure
OUTPUT

VINTAGE 7.0KOhm, POWER 10.0KOhm, HOT 14.0KOhm
