CVNCS IN LP SDC

$270.00

5 in stock

ILITCH Cavity Noise Canceling System IN for Les Paul Special Double Cutaway

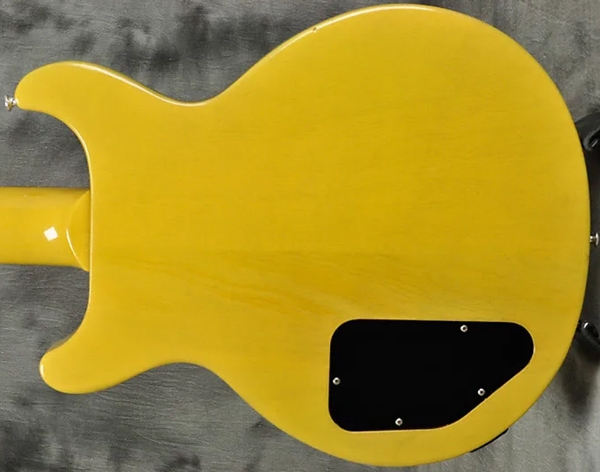

Vintage Gibson LP guitars that have a rhomboid back control cavity with 4 potentiometers and one or two single coil pickups can be retrofitted with the CVNCS IN LP SDC
The CVNCS IN LP SDC is for one or two P90 style single coil pickups which read between 7.0KΩ and 9KΩ resistance
Contact us first if you want to build a CVNCS IN LP SDC for any special single coil pickups
Note – All single coil pickups MUST be same polarity same winding direction (No RWRP)

5 in stock

Description

ILITCH Cavity Noise Canceling System IN for Les Paul SG guitars
Enjoy your play and tone without the hum

STRENGTH SELECTING:
1. Find out from the pickups brand and model spec the alnico rod magnets type and the DC resistance in KΩ.
2. You can measure the DC resistance of the pickups (using a digital multimeter at 20 KΩ range or automatic) in the following way:
= Plug in a normal guitar cable into the guitar output jack
= Put Volume Tone pots at their Max position
= Go to position 1 – Bridge pickup only
= Measure the DC resistance between Sleeve and Tip at the other side of the guitar cable Jack
= Do same for the other pickups and write down the readings

Then you select the CVNCS R2 STRENGTH you need
STD – Strength 10 – for Alnico polepiece pickups 6-8 KΩ resistance
POW – Strength 15 – for Alnico polepiece pickups 8-12 KΩ resistance/Steel screw poles pickups (NOT P90!) 7-9 KΩ resistance
HOT – Strength 20 – for Steel screw poles pickups P90 7-9 KΩ resistance

SOUND:


Audio MP3 files recorded with a close located Audix mic, AC 30 – all tube amplifier and LP Goldtop Guitar equipped with IP90 pickup on Bridge position and IP90 on Neck position

VIDEO:

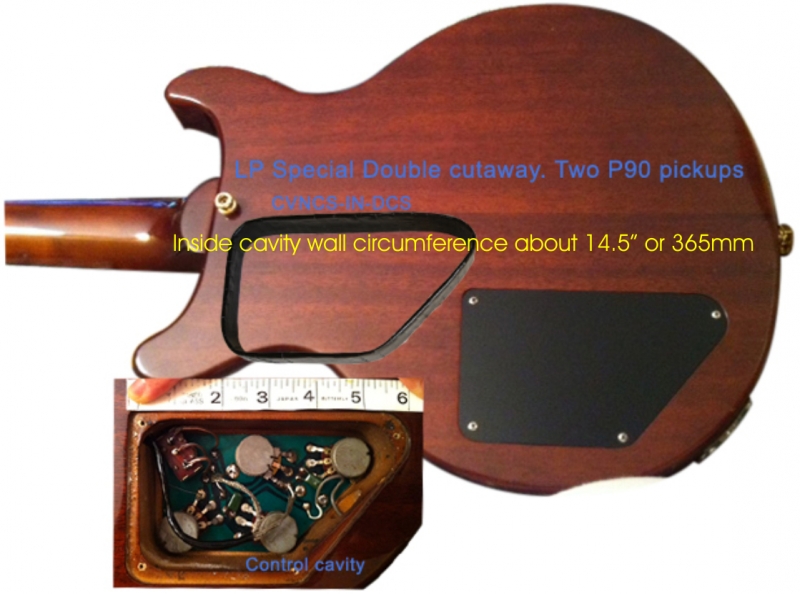

CVNCS-IN-SDC; LP Special Double cutaway style. Inside cavity wall circumference about 14.5″ or 365mm
Click here to see image
